Tb10 | Beijing Special Battery Co.,Ltd

Basic Info.

Model NO.	TB10-30kVA
Standby UPS	Sine Wave Output UPS
Output Capacity	Large Type
Equipment Mode	Decentralized
Brand	Kemapower
Product Name	Tb 40K Low Frequency Online UPS
Size	700365950-7805801170
Transport Package	Safety Packing
Specification	TB40K
Trademark	KEMAPOWER
Origin	China
HS Code	8504402000
Production Capacity	50, 000PCS/Year

Product Description

TB10-30kVA Low Frequency Industrial Online UPS Backup UPS
KEY FEATURES
*Three phase in, one phase out
*Microprocessor control
*True on-line double conversion design
*Sine wave pulse width modulation
*Isolated output
*IGBT inverter design
*Wide Input voltage windows
*Pure sine wave output with less than 3%THD
*Expandable backup time
*Generator compatible
*Cold start
*Load/Battery power meter display
*Overload, on-line, battery status LED/LCD
*Advanced Battery Management
*Automatic charging in UPS off mode
*Zero transfer time
*Smart RS-232 communication port
*Optional SNMP card

Technical Specifications

MODEL		TB6K	TB 8K	TB10K	TB15K	TB 20K	TB30K	TB40K
Power Capacity		6KVA	8KVA	10KVA	15KVA	20KVA	30KVA	40KVA
		4.8KW	6.4KW	8KW	12KW	16KW	24KW	32KW
Input	Voltage Range	380V±20%(3 phase) or 205V±20%(3 phase)
	Frequency	50Hz±5% or 60Hz±5%
	Phase	3 Phase + GND
Output	Voltage Range	220V±1% or 110VAC ±1%
	Phase	Single phase + GND
	Frequency	50 (60)Hz ± 0.3%
	Waveform	Pure sine wave
	Overload Capacity	Overload 125% for 10 Mins, 125%-150% for 30s .automatically resume when load become normal
	Power factor	0.8
	THD	< 3%linear load), < 5%( nonlinear load)
Battery	Battery Type	Sealed lead acid, maintenance free
	DC Voltage	192VDC					384VDC
	Max Charge Current	10A					6~30A
Efficiency	Whole unit	>85%
Transfer Time		0ms
Panel Indication	LCD	Input,oupt,batteryvoltage,frequency,loadrate,UPS state, temperature
	LED	Main input ,bypass,Inverter,Battery,Overload,Fault
Environment	Temperature	0~40ć
	Humidity	0~95%(non condensing)
	Noise	<58dB(1m)
Communication	Interface	RS232
	Software	1.Power status 2.UPS shutdown 3.Monitor UPS status 4.UPSself test5.Auto-save files
Product size(mm)		700365950					1000660145
product weight(Kg)		65	80	88	150	150	440	520
Package size(mm)		7754301125					9457451395	11358101755
Package weight(Kg)		80	95	98	165	165	460	550

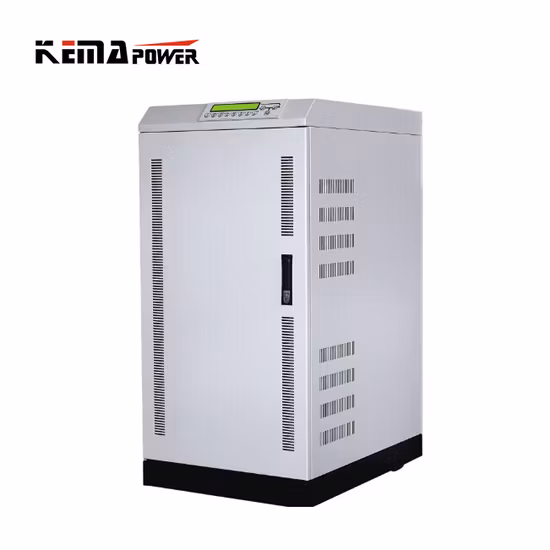

Tb10-30kVA Low Frequency Industrial Online UPS Backup UPS

PRODUCT
Low Frequency Industry Sine Wave UPS
Three Phase in Single Phase Out 10K/15K/20K/30K/40K/60K
Output 0.8/0.9PF

LED+LCD
RS232/SNMP

Tb10-30kVA Low Frequency Industrial Online UPS Backup UPS

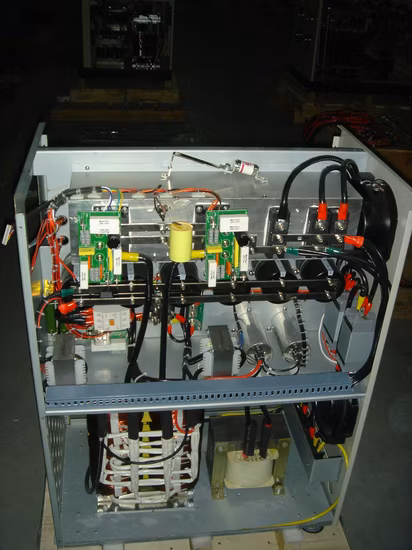

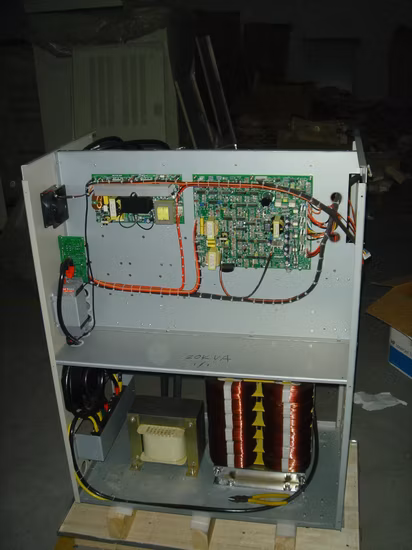

Transformer based, Heavy duty,Pure sine wave
Why Choice us ?15 years Richexperience manufacturer, 8000 square meter,200 worker .15 Engineer keep to improve design and supply new products .7 QC to controller the Full process,100% inspection before shipment .TOP 5manufacturer,Large batch production to guarantee competitive price.We are the only manufacturer who can sign "Quality Warranty"&"On Time Delivery Warranty" with client.One of the Few Supplier whom have factory to make the Key Productsand also supply Complete set system design and installation supporting
Support OEM/ODM service with LOW MOQ!10 years experience in international bidding together with dealer.annually train to dealer office or in factory about design/installation and maintenance.

FAQ:1. Are you factory or trade company?
We have factory in Foshan Close to Guangzhou to make UPS, Inverter and Controller
3.How can I get your pricelist?Send an enquiry about what you need, our sales will reply u within 12 hours.4. Can I get an sample to check quality before mass order? Sample is welcome to check quality. 5. Any guarantee for your products?one year or Two years, FOC Spare Parts with shipment.
will supply service manual and Online supporting
to train Dealer Engineer in dealer office
welcome training in China
Chinese Engineer can speak English
6. How about the delivery time?Sample order within one week, mass order 10-30 days7. Do u support OEM/ODM service?We have experienced R&D team, OEM/ODM is welcom8. Payment terms, any convenient and safe way for our buyers?T/T,W/U or LC options. Your money will be in safe, your business will be in safe!
8.Payment terms, any convenient and safe way for our buyers?T/T,W/U or LC options. Your money will be in safe, your business will be in safe!
